Prison Security Fence with Barbed Wire

We supply high security prison fencing systems of GAW fencing panels, security gates, barbed wire, concertina barbed tape of all sizes.

The fencing panels are mostly weld mesh heavily galvanized after welded ( simplified as GAW) for corrosion protection or powder coated for weather proofing. The security gates for entrance are commonly made of same mesh infilled panels galv. or powder coated into same color with the mesh panels. The anti climbing fencing tops are concertina barbed wire, or a combination of concertina barbed wire and stranded barb wire with enhanced security and safety for prison perimeters.

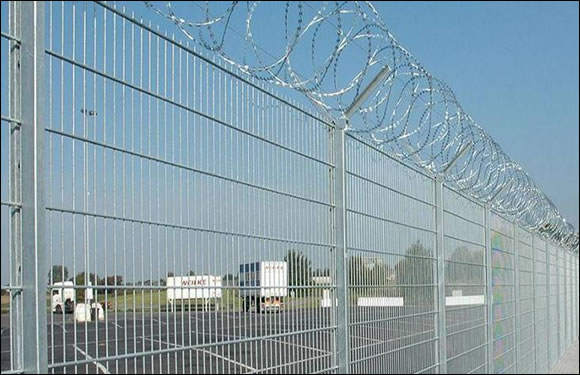

Prison Perimeter Security Fencing

Prison security fence project drawing reference

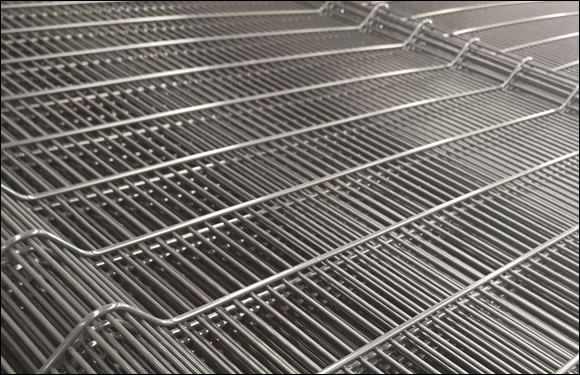

Prison fence panels

GAW fencing mesh: 2” x 6’, 11ga ASTM A392 Class 1 GAW mesh fencing material

Fence top
Double security tops: Concertina barbed wire coils and strand barbed wire line

Barbed wire
12”, 3-strand barbed wire section at the top.
The barbed wires meet ASTM A 121, Class 1, Coating Type Z
Materials: 12.5ga wire, twisted with 4-point, 14gaug barbs spaced a maximum of 5-inches on center.

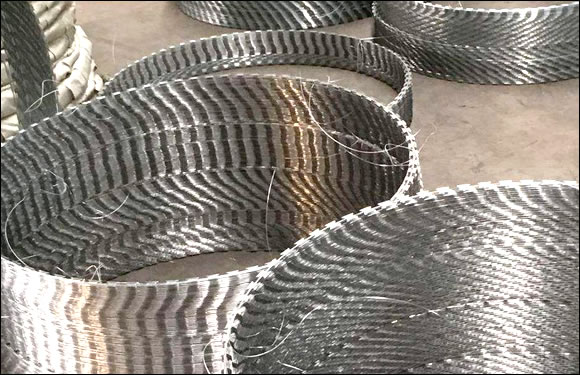

Concertina barbed wire roll

Hot dip galvanized
Diameter: 900mm
Core (central wire): 2.4 mm
Blade (L / l): 22 mm / 15 mm
Spacing: 34 mm
Spiers: 56
Roll length: 10m

Security Gates

Gates (2200x1000mm RAL7016) 4 units, gates (4000x3555mm RAL7016) 1 unit
Steel pillars 4 meters height (110x55x5 RAL 7016) plus ring for fixing to concrete
Spider attachment 2460 units,
2D panel (4/6/4 4000x2220mm RAL7016)
Fence high 4 meters.

Posts and Support Arms

The posts are standard internally and externally galvanized posts that meet the minimum requirements defined in the CLFMI.
Post brace rails 1.66 inch OD galvanized.
Fitting for the top: 4 inch post cap with a barbed wire extension arm galvanized
