Popular Products

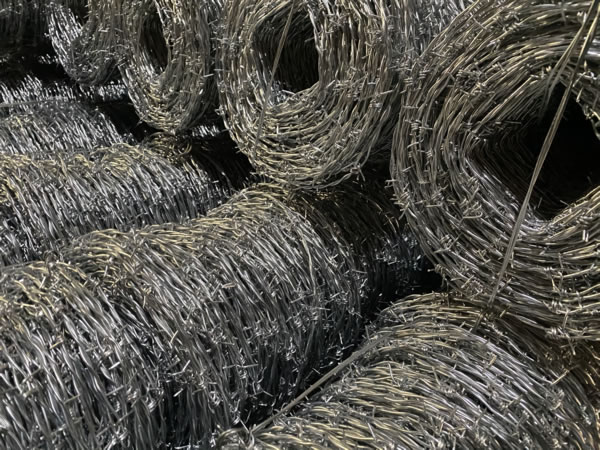

ASTM INTERNATIONAL STANDARD / A121 Hot Dip Galvanized Barbed Wire for Jordan, Oman, and Middle East Countries
Electro Galvanised Barbed Wire for India
Reverse Twisted Low Carbon Steel Galvanized Barbed Wire for Paraguay, Chile, Peru, Central and South American Countries
Barbed wire for customer in Mexico ( 14#x16#, double twisted,electro-galvanised, 25kgs/roll. )
Anti-climbing barbed wire, single barbed wire or single strand barbed wire for Yemen
For suppliers in Australia (High tensile wire of at least 2.5mm with a long barb of around 20mm, barbs spaced at around 65mm.)

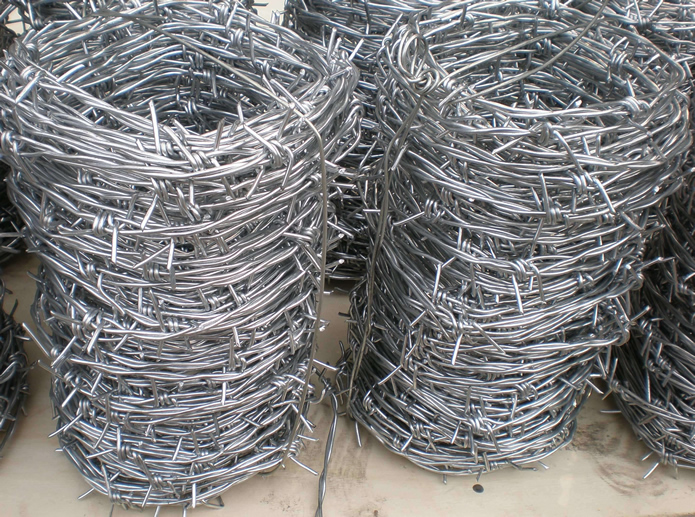

Hot Dip Galvanized Steel Wire for Korea, Straight and Reverse Twisted
Different types of barbed wire fences to major importer and distributor of steel fencing product in USA market.
HDG ( Hot Dip Galv. ) Barbed wire, distance between two barbes: 10-15cm,
13kgs/m, to Korea
Barbed Wire, 150mm barb spacings,
all Barbs 2.00mm diameter, Hot dipped galvanised before manufacture. Market: For Jordan, Oman and regional markets.

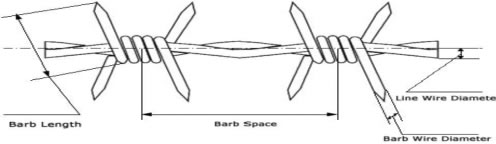

Rolls of Barbed Wire with the following specs:
Manufactured from zinc coated (galvanized) steel wire
Double twisted line wire with four (4) barbs
Line wire diameter of 2.5mm
Barbed wire diameter of 2.0mm
Barb spacing of 10cm
Minimum tensile strength per wire of 380 Pa
Hot dip galvanized to a minimum of 210 grams/m2
Roll length: 200 meters
Plastic coated barbed wire is widely used in safety protection, border and boundary fencing, fencing walls, chain link fencing systems, field fencing and so on. We offer galvanized barbed wire with PE or PVC coating treatment, mostly in green coating. PVC coated barbed wire is normally used with pvc coated mesh panels of the same color to form a fencing system.
Technical Info:
- Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.
- A variety of colors like green, blue, yellow, orange, gray, is available.
- Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.
- Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.

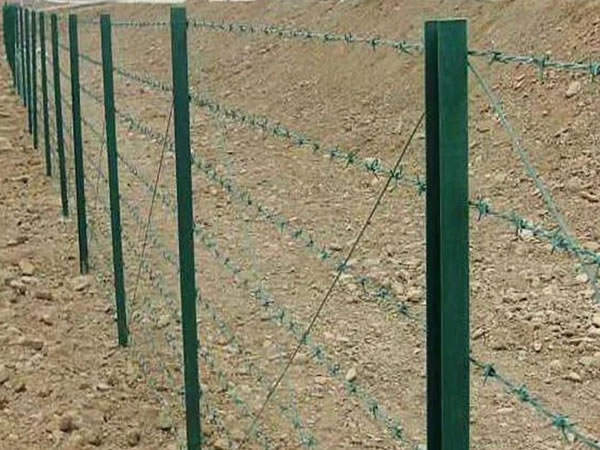

Hot dipped or electric galvanized zinc pvc coated Wire Barbed, 450 mm coil diameter, 50m roll length, for grassland barrier fence. Traditional Twisted Double Barbed, Wire Gauge 2.0×2.0mm, Barb Spacing 4" to 5", Fixed with PVC Coated Steel Round Pipe Post with Hooks

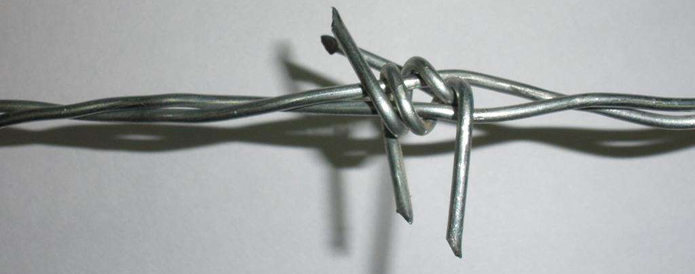

Galvanised Steel Wire Barbed:
Galvanised steel wire
Double Twist
Barbed spacing 4''
1 roll x 50m
Boundary Security Mesh Fence Post With Barbed Wire: High security double strand type with 4 points, barbs spaced 7.5 cm apart. Barbs are sharp and tightly wrapped, twisted 12.5 gauge line steel wire, uniformly coated with zinc hot dip galvanized in accordance with ASTM A-121 Class3 and also PVC coated in green. Used with chain link netting panels.
Popular Product
Razor Barb Wire Rolls dia 760 mm/56 cycles - extended length 10-12 mtr/coil steel or galvanised steel.
12.5 gauge or greater barbed wire ASTM A121.
Blade Size: 65mm length x 15mm width, in coils,
Coil diameter: 900 mm x 14 meter per coil
Material: Hot dip galvanised or ss
Diameter: 2.5mm steel core
SS Barbed Tape Concertina Coils have high tensile cored line wire spirally coiled. Barbs are fixed at regular intervals. The turns of the concertina coils are inter-connected at regular distances around the circumference by means of clips, to form diamond meshes upon extension. When extended to its full length, the concertina coil unfurls easily and provides a cylinder-like barrier.
Materials: Mainly AISI stainless steel 304, 316 and other SS grades.
Main Market: United Kingdom, Singapore, Philippines, USA, Middle East Countries, etc.
Material Grade: SS 316
Stainless Steel (316) crossed concertina G2 coil.
Coil Diameter is 800 mm (BTO-18)
Supplied with Stainless Steel (316) barbed wire
For Singapore.

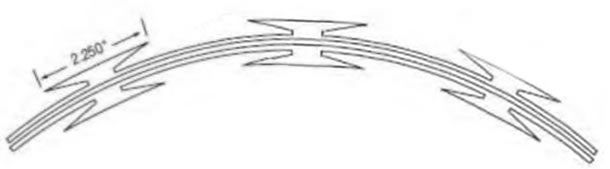

30” diameter barbed tape concertina (BTC),
stainless tape, stainless core, medium barb
Detial Specification:
- Coil Diameter: 30’’
- Spirals Per Coil: 56
- Row of Clips: 3
- Length per Coil: 50’
- 2.4 mm dia. High tensile (1500mPA) stainless core wire

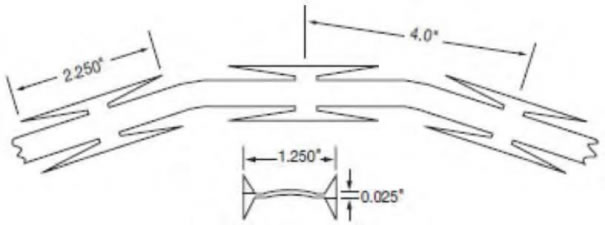

Concertina Razor Wire is widely used for construction of high security fencing projects in military and national defence. We export directly and supply Razor Wire for Government tenders and constractors in various countries ( Kuwait, Jordan, and other countries). Concertina Wire can be divided into Single Concertina and Crossed Concertina Wire.

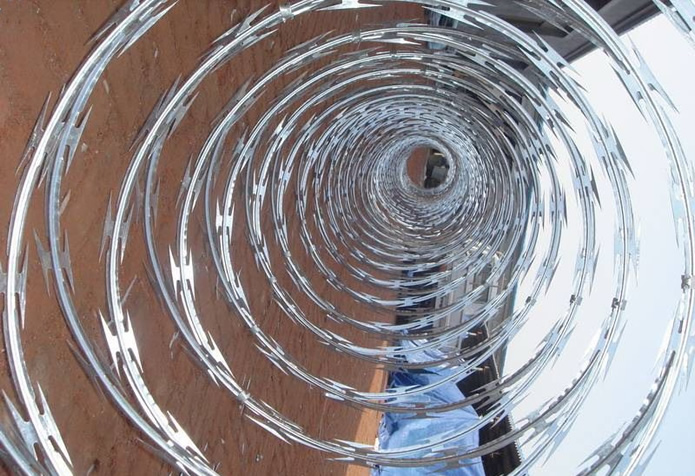

Concertina CBT-65 Razor Wire cross type in SS 304 supplied as per following details:
Concertina Wire for Boundary Wall
Standard length: 8.5 meters per coil with 56 loops per coil, CBT-65
Razor barbed types: Cross type.
Outside diameter: 800mm.
Ring to ring distance: 15cm to 18cm.
Razor distance: 100+/-2mm
Stainless steel razor wire (SS304) blade thickness: 0.5+/-0.05mm, Core wire: 2.5+/-0.1mm, Blade length: 65+/-2mm
Blade width: 21mm,
Blade space: 100mm, 56 loops / coil.
Minimum weight: 17kg per coil.
Fastening clip (SS304) for joining of Coil (with required number) to be provided with Technical Details.
Material/ certificate of conformity and standard warranty with supply.
Any deviation from stated sizes is clearly mentioned.
The razor wire flatwrap is a flat spiral coil formed by clipping the concertina razor wire loops. This flat razor wire is mainly used as fencing/ barrier lines mounted on existing metal fence tops. Standard height is 450mm, 730mm and 980mm, or 500mm, 700mm, 900mm. Various sizes available.
The razor wire flatwrap, being a flat construction, stays within the overall dimensions of the fencing and looks less aggressive. It is preferable for most public places security fencing applications.
Flatwrap Razor Barbed Wire BTO-12, Hot Dip Zinc Plated,
Clipped by Steel Clips to form a Flat Panel Height 730mm,
Attached along Top Rail of Framed Metal Expanded Steel Fencing
Razor Wire Type: Flat Coils
10m to 15m Per Roll,
OD: 600, 750, 900mm;
Blade Type: BTO-12, 22
Electro Welded Razor Wire Mesh Panel is a multi-functional high security fencing fabricated from high tensile razor barbed wire. Welded into diamond pattern or square pattern flat panels. Also known as Straight-line Razor Wire.
Razor Wire Fence is almost impossible to climb or cut off with the standard tools, suitable for grass boundary, railway, highway, airport and various facilities protection.
Materials
Hot galvanized sheet and stainless steel sheet 304, or 316;
Galvanized wire electro galvanized, hot dipped galvanized, or pvc coated galvanized.
Specifications
Welded Razor Wire Mesh Type
Square Hole Size: 100mmx100mm, 150mmx150mm, 200mmx200mm
Diamond Hole Size: 75mmx150mm, 100mmx200mm, 150mmx300mm.
Puma is a Supplier and Exporter of various Barb Wire Plant and Machinery to African, South American and Asian Countries. We provide export and services for setting up Razor Blade Barb Wire Fencing Plant & Heavy Duty Barbed Wire Making Machine to produce Normal, Single, Double Twisted Barb Wire.
Popular Product
Machinery specification:
Volt: 220V - 440V
Wire diameter: CAL. 12, CAL. 13, CAL. 15.
Strand 1.72 mm, barbed 1.5 mm, pitch 5" and Other Sizes
We supply machines for importers and distributors from Egypt, Malaysia, Turkey, Brazil and other countries.
Features: Light, easy to operate, high efficient, material saving.
Structure: Two parts: the main machine for producing strip plates by punching sheets, and the coiling machine.
Popular Product
Popular Product
Powder Coated Frame Finishing And Fencing Trellis & Gates
Pale: 60mm wide*2mm thickness*2.4m high
Post: 50mm x 50mm x 1.6mm thickness x 2.95m high
Rail: 50mm x 50mm x 4.0mm thickness x 2.5m length (from post center to center)
Bolt: M8 and M12.
Popular Product
Colors available: Green and black coating as most popular. Biege, white or other colors at customers request.
Powder coated steel mesh is suitable for the yards, parks, zoos, pool security fencing, industrial zones.

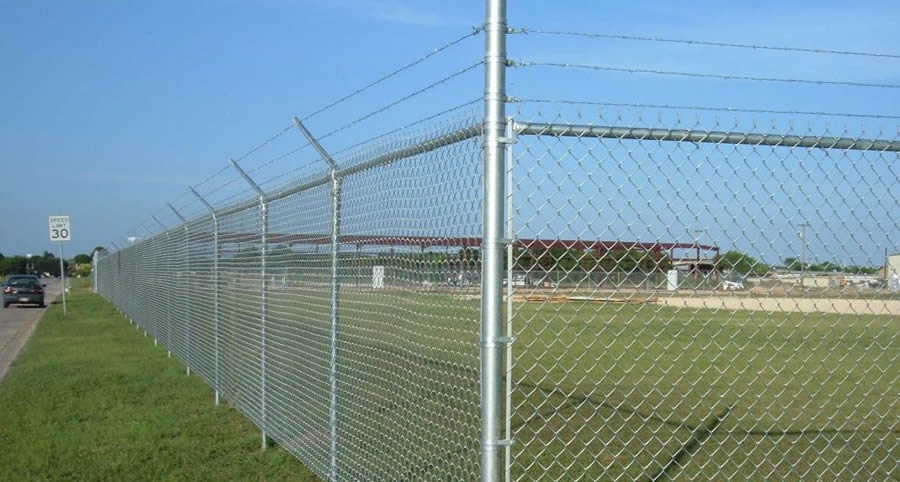

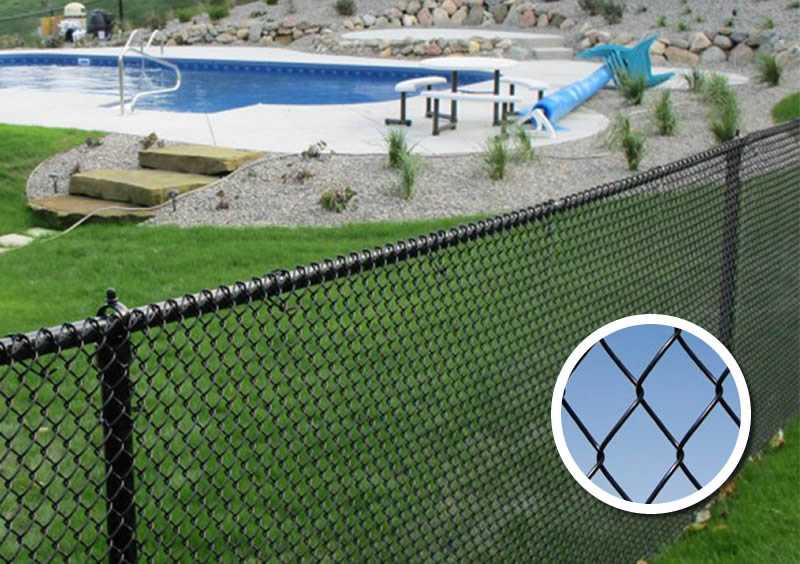

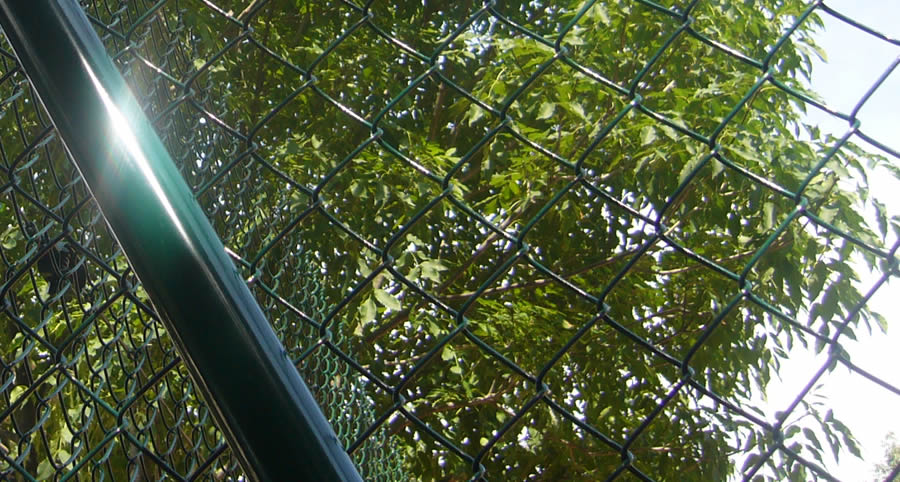

PVC coated steel mesh fence, rhombic mesh opening 2"x2", chain link style, wire diameter 2.76mm, galvanised pvc coating in green, at 2.4 metre height

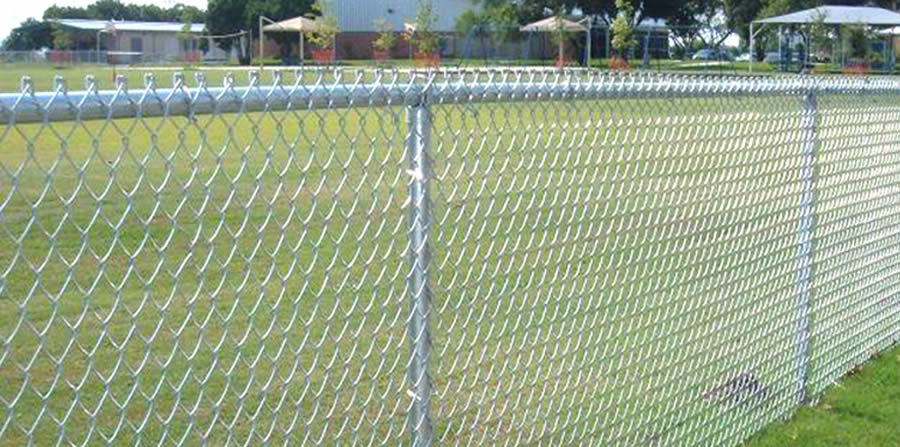

A kind of aluminum powder coated steel fence. The aluminized steel mesh fence offers an option with less cost in commercial uses compared real aluminum. It also has the aluminum shine surface to enjoy almost all the features of the real Aluminum fences.
Popular Product

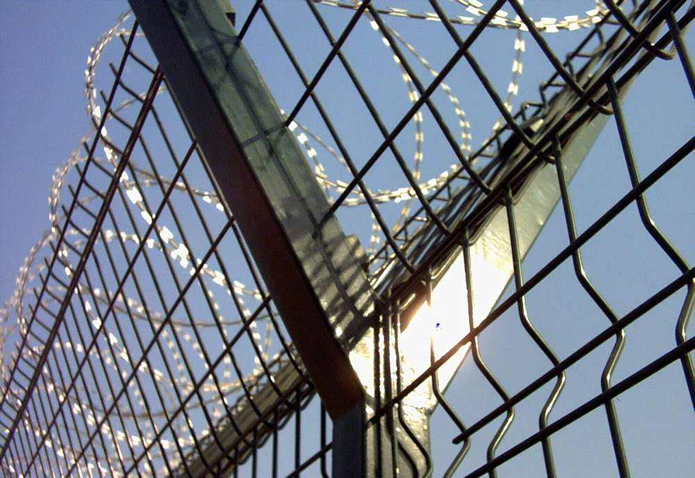

Panels:
Heavy Hot Dipped Galvanized 358 Mesh Fence
Green PVC Coated Steel 358 Mesh High Security Fencing
Heights: 2m and 2.4m
Horizontal Wires: 4mm, Single or Double Wire; 12.7mm centres
Vertical Wires: 4mm; 76.2mm centres
Mesh Style: 358 Welded Mesh
Razor Wire Tops: Optional.
Heigth of the fence: 2m and 2.4m with another 0,5 height for razor wire.
We supply in full sets ( one set including one fence panel, one post and its accessories).
Colour range choices: Green (RAL 6005)
Outdoor Electrical Power Substation Fencing Project is composed with:
358 welded mesh panel, steel posts, barbed wire or razor wire and other accessories.
Height of Fence Panels: Excluding barbed wire, shall be minimum 1.8m. Commonly above 3m.
Barbed Wire: The mesh panels shall be topped with not less than three strands of barbed wire.

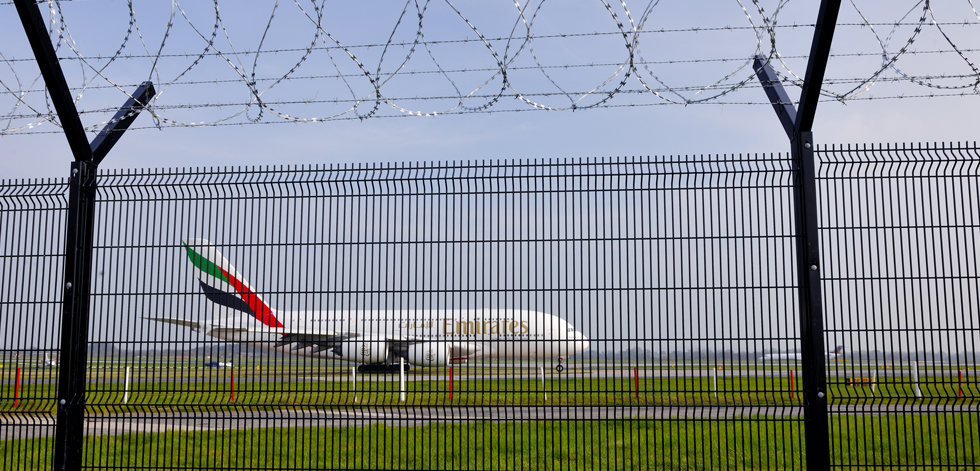

Based on the "V" shape post supported barbed wire, this system offers economically priced perimeter security protection.
Material: Low carbon iron wire, galvanized wire.
Clamps: steel or plastic.
Flat mesh panel:
Height(m): 2.03, 2.23, 2.43
Width(m): 2.5 or 3.0
Hole opening(mm): 76.2x12.7mm for heavy 358 type, or 50*100, 50*150 welded common mesh type.
Wire diameter(mm):4-5

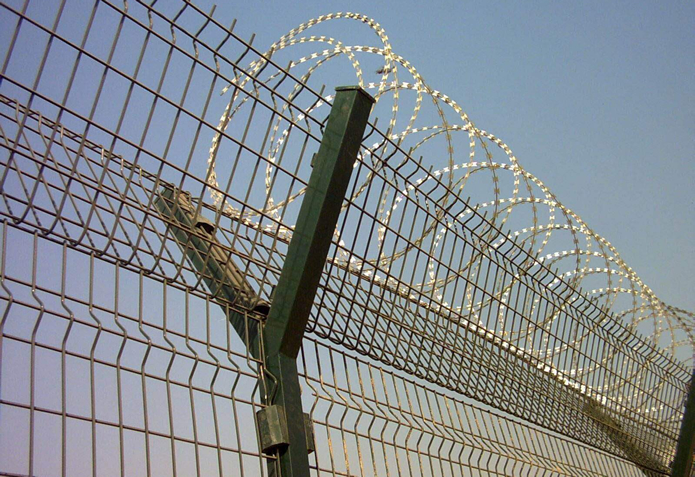

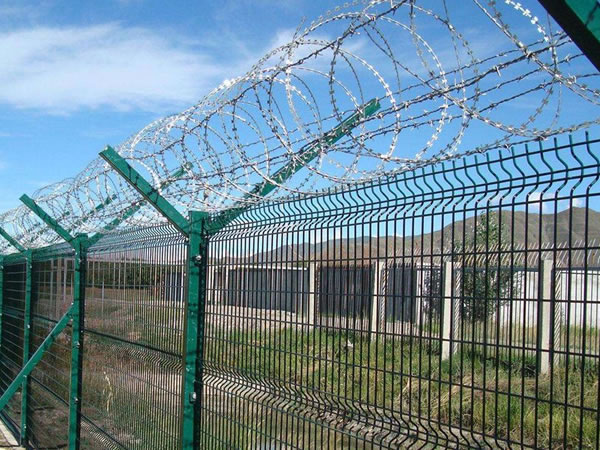

Post with V arm to form Y shape Post for attaching concertina razor wire coils.
Square post(mm):60*60*2, 60*60*3.
Rectangular post(mm): 60*80*3.
Popular Product
With Roll of Razor Wire, Coil Top 3.55mm
Galvanized Plasting Coated Wire Mesh
Hole size: 50 x 50 mm, square hole
Material: 7 gauge Steel hot dip galvanized coil spring wire.
Minimum tensile strength of 5,620 kg/sq cm.
The wire shall be according to standards below:
Standards: ASTM A 90-69 Weight of Zinc Coating
ASTM A 123-73 Zinc (Hot Galvanized coating)
Surface: PVC Coated in green.
Popular Product
Galvanised Armoring Wire for Cables
Tensile strength: 340-500 N/mm2 for all sizes
Elongation: Min. 10% for all sizes
Wire dia(mm): 0.90, 1.25, 1.60,2.0,2.5,3.0,3.9
Tolerance(mm): +/-0.025, +/-0.035, +/-0.045, +/-0.050, +/-0.065, +/-0.07, +/-0.075
Max Elec. resistance(ohm/km) :216.92, 122.02,68.64,43.93,28.11, 19.52, 11.55
Min Zinc coating(g/m2): 150, 200, 230, 240, 260, 275, 290
Coil weight: 300-800kgs/coil
Packing: Junbo coil, plastic bag
Coil dia.(ID/OD mm):0.9mm-1.6mm:340/590,370/590,450/800,430/760;
2.0mm-3.9mm:450-800,508-840.
Twin Loop Cinch Binding Wire, Due-wire, Nylon Cladded Galvanised Wire, available in red, black, gold, silver and various colors. Used as Wire spines suitable for binding of cinch books and notebooks, calendar, autograph album and other cinch products.
Popular Product
Color: Annealed and galvanized, or vinyl coated into yellow, white, bright silver, black, etc.
Diameter: 0.5mm, 0.6mm, 0.7mm
Package: 5kgs roll, 25 kg or 50 kg rolls, pp film inside and hassian cloth outside or pp woven bag outside
3mm Wire Diameter Black Annealed Tie Wire for Garden Tying and Other Uses
Fencing wire, mesh wire and binding wire
Material: Annealed and galvanized mild steel wire.
Package: Small coils of 5kg, 10kge, 15kg, more.
Material: Black annealed wire
Wire diameter: 0.8mm
Weight: 0.4kg/spool.
Wire length: 95m/spool.
Supply Forms: Winding wire on plastic spools.
